SX Ram Pump Range

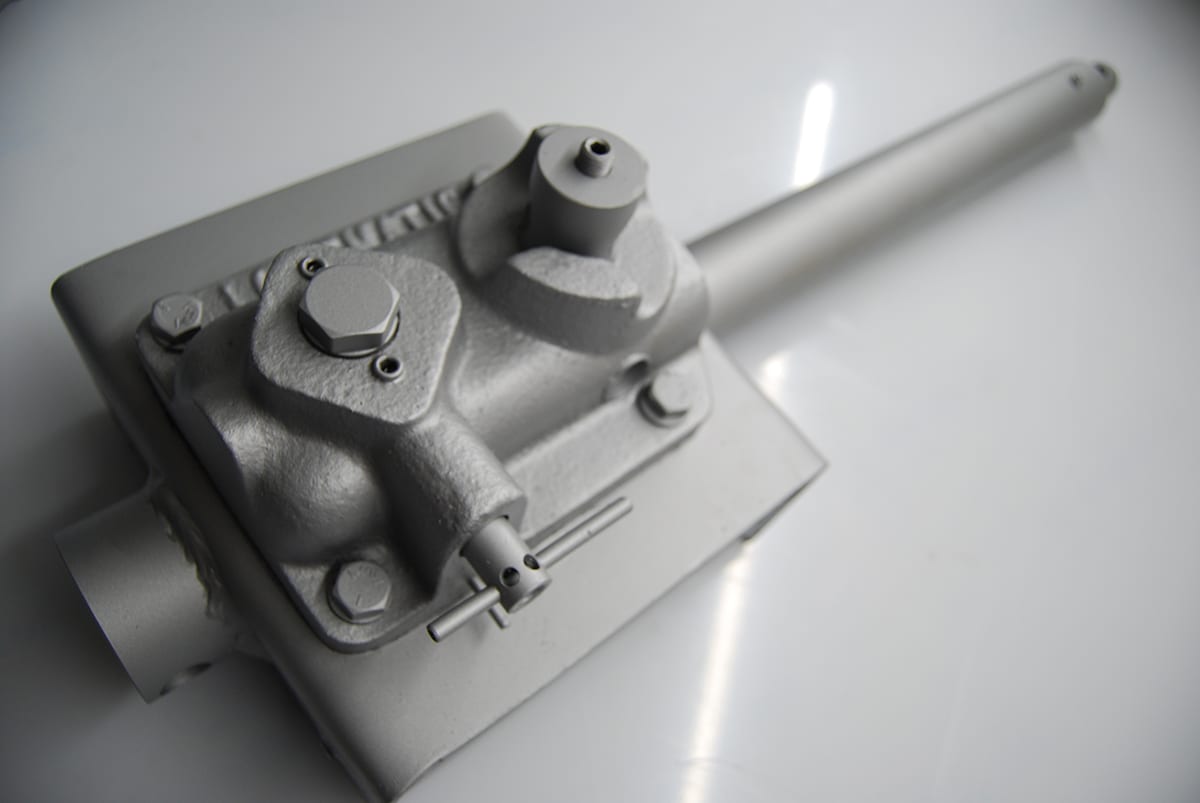

The SX Series Ram Pump combines a 38mm bore single acting cylinder and the rugged HP2LT Hand pump.  The modular construction eliminates the need for any external pipework. A maximum thrust of 2000kg @ 170 bar (2465 PSI) can be achieved with strokes available from 150mm up to 1000mm. This arrangement is ideally suited to tilt deck car transporters, plant trailers, conveyors or stacker trucks where the addition of a powered hydraulic unit is not possible.  The hard chrome plated piston rod and sealed unit provides the all-weather, heavy duty solution to your lifting problems.

Available next day from stock.

All prices are based upon ordering a quantity of 1-5, for greater quantities contact us direct.

All prices exclude carriage and VAT

Download data sheet
